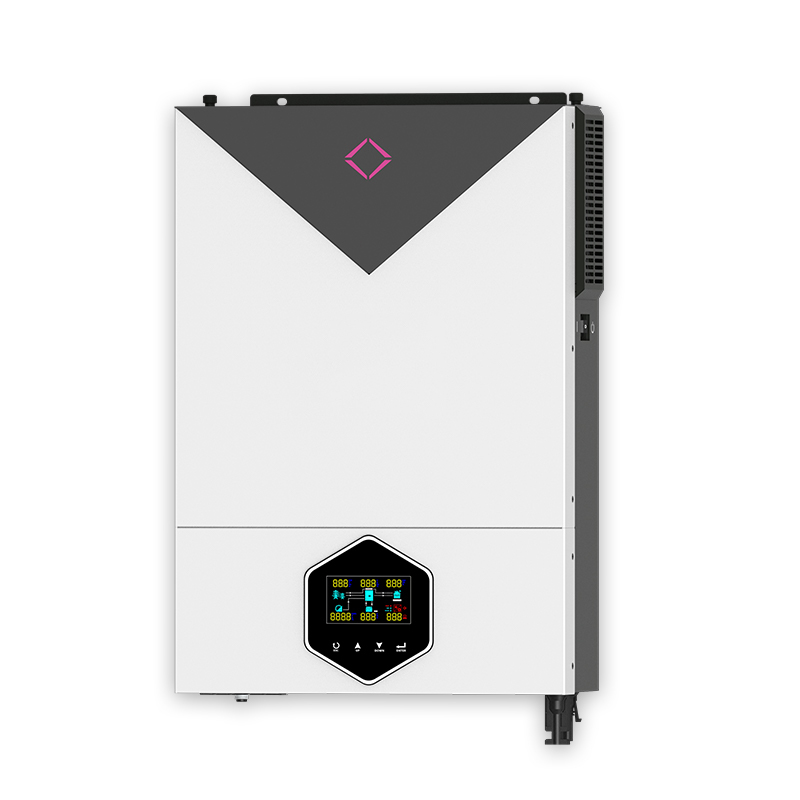

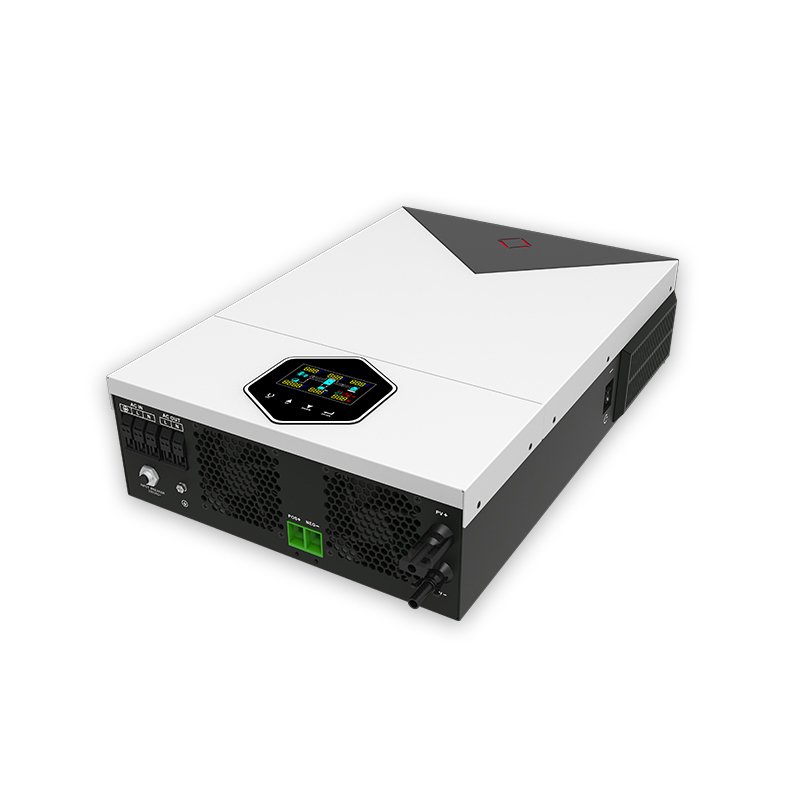

MPS-VIII Series On/Off Grid Solar Inverter
Feature:
1.Pure sine wave solar inverter(on/off grid)
2.Built-in 120A MPPT(Max 6500W) solar charger
3.Output power factor 1.0
4.Dual output(V2.0)
5.High PV input voltage range(90~500VDC)

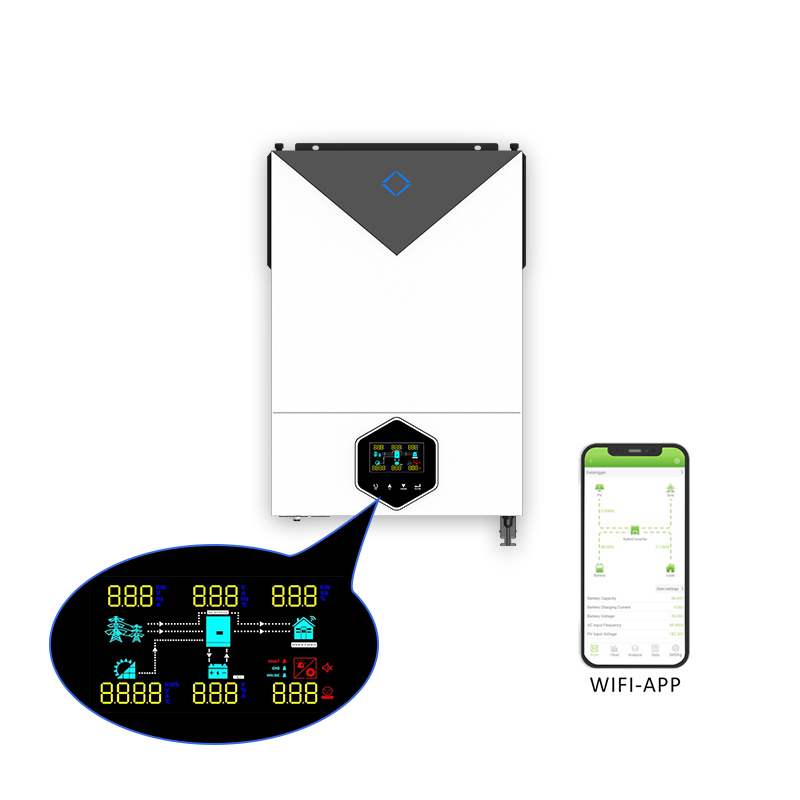

6.WIFI&GPRS available for IOS and android
7.Inverter running without battery
8.Built-in anti-dusk kit for harsh environment
9.One-click restoration to factory settings
10.Smart battery charge design to optimize battery life
11.Built-in lithium battery automatic activation
Share Our Software With Your Network
Description
Built-in 120A MPPT(Max 6500W) solar charger
| Model | MPS-VIII 3600W | MPS-VIII 4200W | MPS-VIII 6200W |
| Maximum PV Input Power | 6200W | 6200W | 6500W |
| Rated Output Power | 3600W | 4200W | 6200W |
| Maximum Solar Charging | 120A | 140A | 120A |
| Input Voltage | 230VAC | 230VAC | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | 360VDC/500VDC | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | 90VDC/120VDC | 90VDC/120VDC |
| MPPT Voltage Range | 90VDC~450VDC | 90VDC~450VDC | 90VDC~450VDC |
| Number of MPPT Trackers/Maximum Input Current | 1/27A | 1/27A | 1/27A |
| Norminal Output Voltage | 200/230/240VAC | 200/230/240VAC | 200/230/240VAC |
| Output Voltage Range | 195.5~253VAC | 195.5~253VAC | 195.5~253VAC |
| Norminal Output Current | 15.7A | 18.2A | 26.1A |
| Power Factor | ＞0.99 | ＞0.99 | ＞0.99 |
| Maximum Conversion Efficiency(DC/AC) | 97% | 97% | 97% |
| TWO LOAD OUTPUT POWER(V2.0) | |||
| Full Load | 3600W | 4200W | 6200W |
| Maximum Main Load | 3600W | 4200W | 6200W |
| Maximum Second Load(Battery mode) | 1200W | 1400W | 2067W |
| Main Load Cut Off Voltage | 22VDC | 22VDC | 44VDC |
| Main Load Return Voltage | 24VDC | 24VDC | 48VDC |
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | 120-140VAC/180VAC | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | 90-280VAC or 170-280VAC | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 30A | 30A | 40A |
| Nominal Operating Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Suge Power | 7200VA | 8400VA | 12400VA |
| PV INPUT(DC) | |||
| Maximum DC Voltage | 500VDC | 500VDC | 500VDC |
| MPPT Voltage Range | 90~450VDC | 90~450VDC | 90~450VDC |
| Number or MPPT Trackers/Maximum Input Current | 1/27A | 1/27A | 1/27A |
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 24VDC | 24VDC | 48VDC |
| Output Wavefrom | Pure sinewave | Pure sinewave | Pure sinewave |
| Efficiency(DC to AC) | 94% | 94% | 94% |
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 24VDC | 24VDC | 48VDC |
| Maximum Solar Charging Current | 120A | 140A | 120A |
| Maximum AC Charging Current | 100A | 100A | 100A |
| Dimension. D*W*H | 420*310*110mm | 420*310*110mm | 420*310*110mm |
| Net Weight（kgs） | 10kg | 11kg | 11kg |
| Communication Interface | RS232/WIFI/BMS | RS232/WIFI/BMS | RS232/WIFI/BMS |
| Humidity | 0~90% | 0~90% | 0~90% |
| Operating Temperature | 10℃ to 50℃ | 10℃ to 50℃ | 10℃ to 50℃ |
