MPS-HP Series Off Grid Solar Parallel Inverter

Feature:

1.Rate Power: 3500VA/3500W 5500VA/5500W

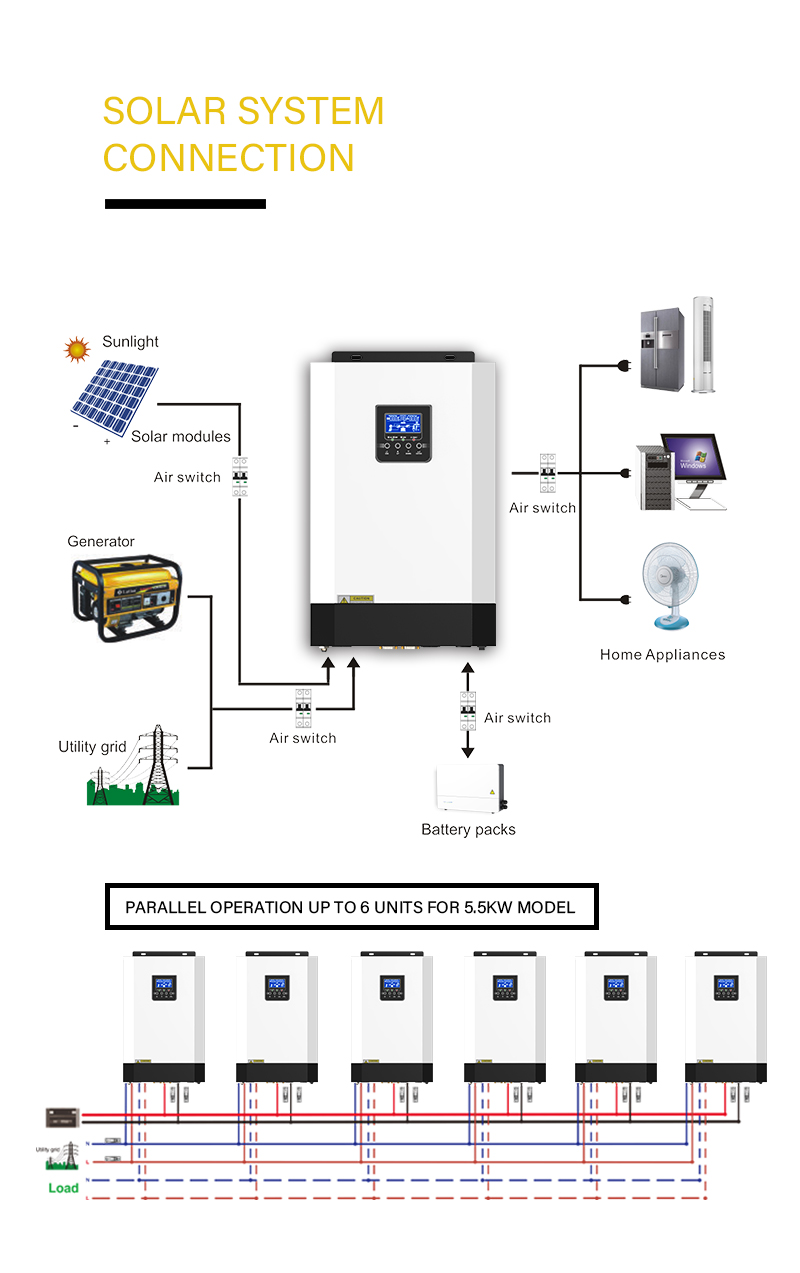

2.Parallel operation up to 6 units

3.Pure sine wave output, output power factor 1.0

4.Programmable supply priority for PV,Battery or Grid

5.User-adjustable charge current and voltage

6.Wide PV input range (120Vdc -500Vdc),110A MPPT SCC

7.Working without batteries in sunny day

8.WIFI Monitoring Function (optional)

9.Anti-dusk kit for harsh environment(optional)

10.LCD remote control with 5/10/20 meters wire(optional)

11.PV and electricity comple mentary

12.Use with lithium battery

Share Our Software With Your Network

Description

Model MPS-3500HP MPS-5500HP
Rated power 3500VA/3500W 5500VA/5500W
Input Voltage 230VAC 230VAC
Input Selectable Voltage Range 170-280VAC(for personal computers)
90-280VAC(for home appliances)
170-280VAC(for personal computers)
90-280VAC(for home appliances)
Input Frequency Range 50Hz/60Hz(Auto) 50Hz/60Hz(Auto)
Output AC Voltage Regulation(Batt.Mode) 230VAC±5% 230VAC±5%
Output Surge Power 7000VA 11000VA
Output Efficiency(Peak)PV to INV 97% 97%
OutputEfficiency(Peak)BAT to INV 94% 94%
Output Transfer Time 10ms(for personal computers)
20ms(for home appliances)
10ms(for personal computers)
20ms(for home appliances)
Output Wave form Pure Sine Wave Pure Sine Wave
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 33VDC 63VDC
Maximum charge current 80A 80A
MAX.PV Array Power 5000W 6000W
MPPT Range@ Operating Voltage 120-500VDC 120-500VDC
Maximum PV Array Open Circuit Voltage 500VDC 500VDC
Maximum Charging Current 110A 110A
Maximum Efficiency 98% 98%
Dimension. D*W*H(mm) 472*297*129mm 472*297*129mm
Net Weight(kgs) 9.5kg 10.5kg
Communication Interface RS485/RS232(Standard)
LCD remote/WIFI(Optional)
RS485/RS232(Standard)
LCD remote/WIFI(Optional)
Humidity 5% to 95% Relative Humidity(Non-condensing) 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0℃ to 55℃ 0℃ to 55℃
Storage Temperature (-15℃ to 60℃) (-15℃ to 60℃)
